⊕ Introduction

　　This machine is an improved vibrating screen machine based on the rotary vibrating screen. It is a powerful and efficient screening machine with high frequency and ground amplitude. It has been changed from a single vibration motor to a dual vibration source vibration motor, and its screen surface has been changed from a single frequency to multiple frequencies. It can quickly atomize and filter materials on the screen surface, thereby achieving efficient screening.

　　⊕ Characteristics

　　1. The vibration force of the screen surface is strong and stable, and the cleaning effect is better.

　　2. The screening machine has multiple frequencies and high material screening efficiency.

　　3. It has a special screening effect on materials with clumps and high viscosity.

　　4. Direct flow design can reduce the residence time of screened materials in the screening machine.

　　5. The whole machine has multiple optimized designs and no maintenance points.

　　⊕ Applicable industries

　　Chemistry, food and spices, plastics, mining, pharmaceuticals, wood and plywood, metallurgy, rubber, feed, fertilizers, sugar&salt industry

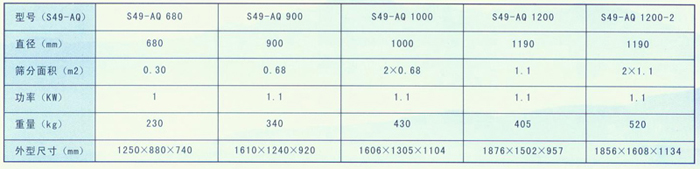

　　⊕ Technical parameters
