⊕ Introduction

　　Simply pursuing high screening accuracy can affect production, while pursuing large output can lead to a decrease in accuracy. Square precision swing screen is an efficient screening equipment designed specifically for the above problems, with high precision and large output. It is widely used in industries such as chemical, metallurgical, non-ferrous metals, non-ferrous metals, food, abrasives, etc.

　　By using a square precision swing screen to vibrate and swing the vibrator, it is transmitted to the screen surface, allowing the material to quickly disperse at the front of the screen, thereby achieving efficient screening.

　　⊕ Characteristics

　　(1) The self-cleaning effect is excellent.

　　(2) The screen has high utilization rate and long service life.

　　(3) Good sealing effect.

　　⊕ Structural diagram

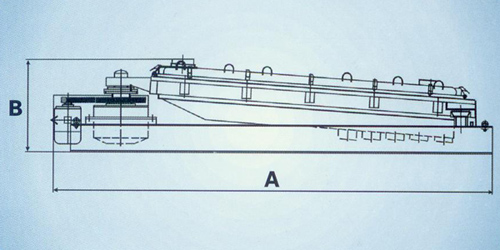

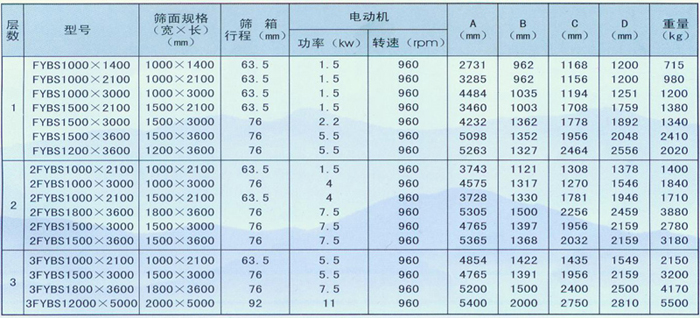

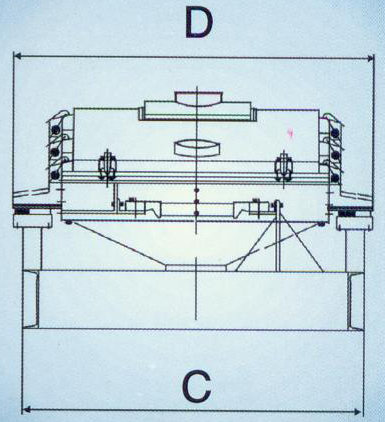

⊕ External dimensions
