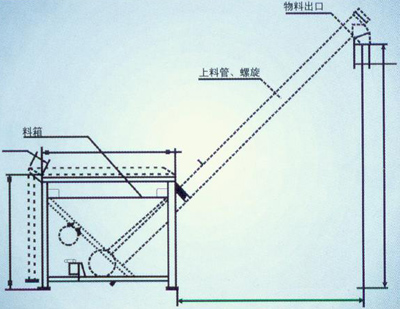

Product Overview:

　　Spiral conveyors, commonly known as winches, are widely used conveying equipment in the mineral, feed, grain and oil, and construction industries. From the perspective of material displacement direction, spiral conveyors are divided into two types: horizontal and vertical. They are mainly used for horizontal conveying and vertical lifting of various loose materials such as powders, granules, and small blocks.

　　Application scope:

　　Spiral conveyor is the main unit for mechanized transportation in various departments of industry and agriculture, which can reduce labor intensity and improve work efficiency. It has a wide range of applications. Suitable for various industries, such as building materials, chemical industry, power, metallurgy, coal, grain, etc. It is suitable for horizontal or inclined transportation of powdery, granular and small block materials, such as coal, ash, slag, cement, grain, etc., with material temperature less than 200 ℃. Spiral machines are not suitable for conveying materials that are prone to deterioration, high viscosity, and clumping.

　　Characteristics of Spiral Conveyor:

　　1. High load-bearing capacity, safe and reliable.

　　2. Strong adaptability, easy installation and maintenance, and long service life.

　　3. The whole machine has a small volume, high speed, and ensures fast and uniform conveying.

　　4. The discharge end is equipped with a cleaning device, which has low overall noise, strong adaptability, and flexible layout of the inlet and outlet positions.

　　5. Good sealing performance, the shell is made of seamless steel pipe, and the ends are connected to each other with flanges to form a whole, with good rigidity.

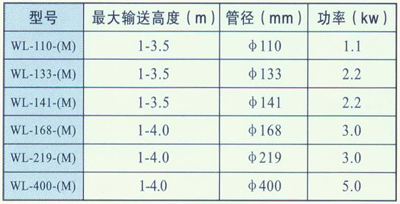

　　⊕ Technical parameters
