⊕ Introduction

　　Ultrasonic airflow screen is a combination of a 40KH, 300W high-power ultrasonic generator on the basis of the original screening machine, making it easy for materials with high viscosity, high precision, easy aggregation, easy blockage, and static electricity that cannot be screened by the horizontal airflow screen to pass through the screen.

　　⊕ Characteristics

　　(1) Higher screening accuracy

　　(2) The lifespan of the screen mesh is longer

　　(3) The output is 3-5 times that of the original airflow screening machine

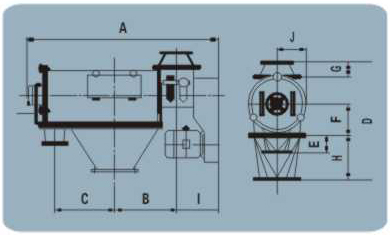

　　⊕ Structural diagram

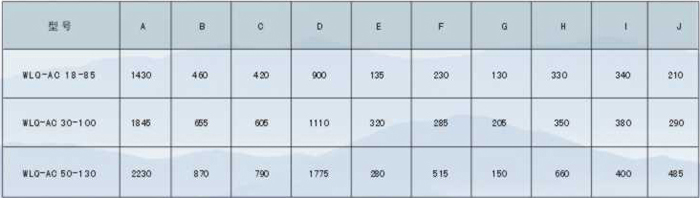

⊕ External dimensions
